Model :

• 21K6RGN-A, 21K6RA-A
• 21K6RGN-E, 2 K6RA-E
• 2 K6RGN-C,  20 K6RA-C
• 2IK6RGNH,   21K6RA-H



---

Wiring Diagram :

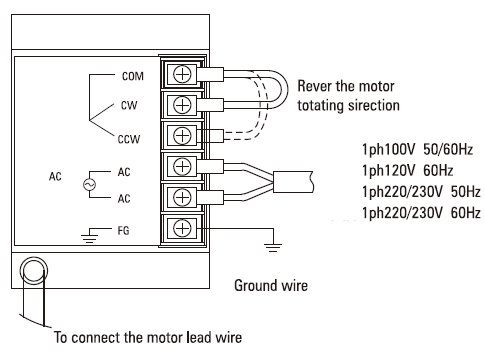

• US Type

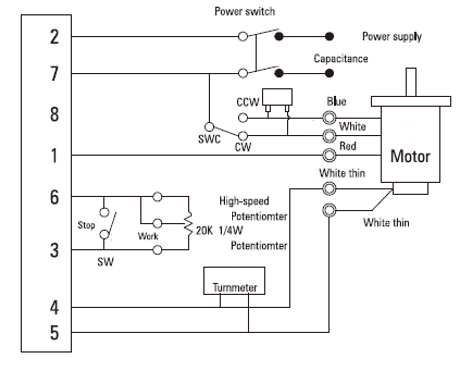

• SS Type



---

Dimensions :

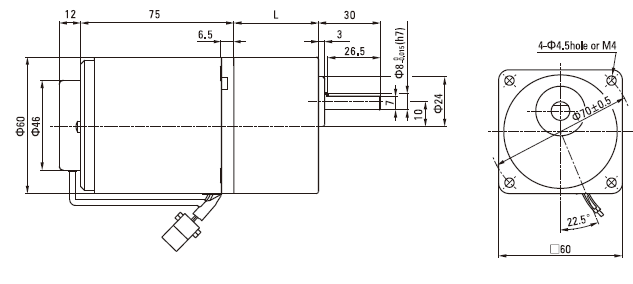

• Lead wiring type

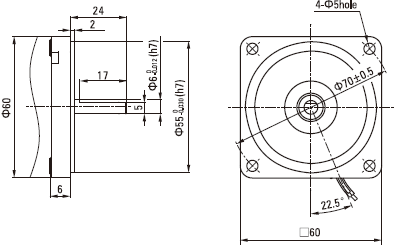

• Round shaft type

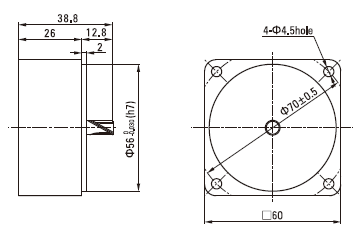

• Gearhead



---

Specifications :


	Lead Wire Type		Output power	Voltage	Frequency	Speed  Control Range	Allowance Torque		Starting torque	Current	Capacitor
	Pinion Shaft	Round Shaft	W	V	Hz	r/min	1200r/min mN.m	90r/min mN.m	mN.m	A	µF
Model	21K6RGN-A	21K6RA-A	6	1ph 100	50	90~1350	50	30	35	0.24	3.5
					60	90~1650	50	29	35	0.25
	21K6RGN-E	2 K6RA-E	6	1ph 110	60	90~1650	50	29	30	0.16	2
				1ph 120						0.18
	2 K6RGN-C	20 K6RA-C	6	1ph 220	50	90-1350	55	29	35	0.13	0.8
				1ph 230						0.11
	2IK6RGNH	21K6RA-H	6	1ph 220	60	90~1650	55	29	35	0.14	0.8
				1ph 230						0.12



---
