Beta Three U15 300W (RMS) 15" Two Way Full Range Plastic Speaker

Product Description:

Portable and installed plastic loudspeakers used in applications including sound reinforcement in Front of House and Foldback applications in Houses of Worship, Events, Clubs, Rehearsal Halls etc. The U Series delivers extraordinary performance at unmatched value.

Key Features and Benefits:

• High output SPL and sensitivity
• 1 x 15” high power transducer with 50mm voice coil
• 1 x 1.7” diaphragm compression driver
• Rotatable Horn: 50º-100º x 55º controlled coverage pattern
• Heavy duty protective grill
• Injection molded
• 2 x NL4 connector
• Cabinet design for FOH and Monitor use
• Suitable for use as a main system with or without sub speaker augmentation
• Portable system (stand), or permanent installation (wall, ceiling)
• Arrays with all active high power U Series sub speakers for extended low frequency, high quality music reproduction
• Monitor kit - optional

Cabinet Dimension:

Specifications
Construction	Plastic
Transducers	1 x 1.7” HF + 1 x 15”LF
Frequency Response (-3dB)	40Hz-18kHz
Rated Power	300W(RMS)
Sensitivity (1W @ 1m)	98dB
Maximum SPL (1W @ 1m)	121dB(Peak)
Rated Impedance	8Ω
Dispersion (H x V )	50°-100°x55°
Connector	2xNL4
Dimensions (W x D x H)	485mm(19.1”)x460mm(18.1”)x700mm(27.6”)
Packaging Dimensions (1 piece/pack)	545mm(21.5”)x515mm(20.3”)x800mm(31.5”)
Net Weight (1 piece/pack)	26kg(57.3lb)
Gross Weight (1 piece/pack)	28kg(61.7lb)

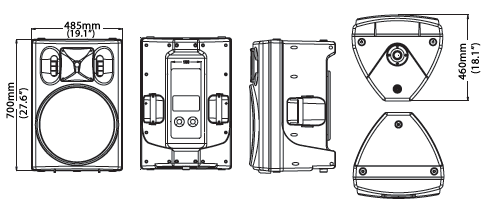

Installation drawing:
