pH Controller and Dosing Pump - BL100

BL100 pH Controller and Dosing Pump is a system engineered for maintaining the pH of swimming pools, hot tubs, and spas. Typically chlorine, whether liquid or solid, is alkaline and will raise the pH of the water that it is added to. As the pH increases above pH 7.4, a form of chlorine known as hypochlorite ion (OCl–) increases. This form of chlorine is 100 time less effective at killing bacteria as compared to the other form of chlorine known as hypochlorous acid (HOCl). For this reason it is important to maintain the correct pH level in order to ensure that the more powerful hypochlorous acid form is available for disinfection. The BL100 was developed to be an inexpensive solution for the consumer to maintain the ideal pH at all times. Simply insert the probe and injection valve in-line with the recirculation pump and provide the chemical to be dosed.

The BL100 is available in multiple configurations including a meter and probe option, a kit for in-line mounting, and a complete package that includes bypass loop and panel mounted flow cell. The kit for in-line and flow cell models include aspiration tubing with filter and dispensing tubing with an injection valve.


FEATURES:

1. Peristaltic Dosing Pump







5. Programmable Alarm System

Enable or disable the low and high level alarms for pH. When an alarm is activated, all dosing will stop. For added safety, the alarm system also offers overdosing protection in that if the set point value is not corrected within a programmed time interval then the meter will go into alarm status.


6. Acid Tank Level/Flow Switch Input

The BL100 allows for a connection to an optional level controller or flow switch. This input can be used to disable the dosing pump when there is no chemical left in the reservoir tank or there is no flow due to the pump being turned off.

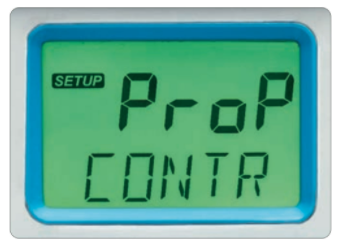

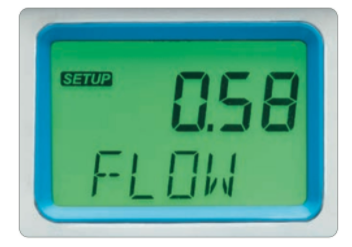

7. Multicolored LCD Display

The BL100 features a multi-colored LCD that provides for a quick way to see the status of the pool controller. If in control mode and operating as intended the display will be green. If control is not enabled then the display will be light green; while in an alarm state the display flashes red.


SPECIFICATION


ORDERING INFORMATION

BL100-00 is supplied with BL100 controller. HI10053 pH/temperature probe. 4.01 pH buffer solution, 20 mL (3). 7.01 pH buffer solution, 20 mL (3), power connection cable, instruction manual and quality certificates for instrument and probe,

BL100-10 (with in-line mounting kit) is supplied with BL100 controller. HI10053 pH/temperature probe, pool controller aspiration filter, pool controller injector, 1/2'' thread, saddle for ø50 mm pipe (2), PVC aspiration tubing (flexible) (5 m), PE rigid dispensing tubing (5 m), 4.01 pH buffer solution, 20 mL (3), 7.01 pH buffer solution. 20 mL (3), power connection cable, instruction manual and quality certificates for Instrument and probe.

BL100-20 (with flow cell mounting kit) Is supplied with BL100 controller, HI10053 pH/temperature probe, flow cell for BL100/BL101 mounting panel assembly for BL100/BL101, pool controller aspiration filter, pool controller injector, 1/2“ thread, saddle for ø50 mm pipe (3). PVC aspiration tubing (flexible) (5 m), PE rigid dispensing tubing (15 m), barbed tubing adapter 1/2'' - 6 mm (2), valves (H), 4.01 pH buffer solution. 20 mL (3), 7.01 pH buffer solution, 20 mL (3), power connection cable, instruction manual and quality certificates for instrument and probe.
