DESCRIPTION

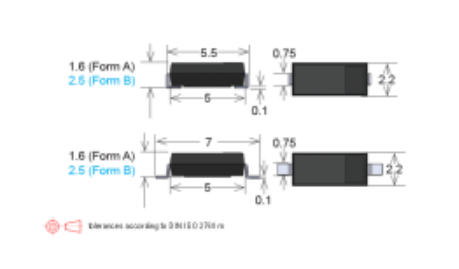

Ultraminiature surface mount (SMD) MK24 series reed sensor used in On/Off control switch, proximity, motion, position detection with optional Form B (SPST-N.C.) contact form. Supplied in tape and reel according to IEC 286/part 3. Axial or gull-wing lead designs available. UL Approval
SPECIFICATIONS
Contact Form 1A (SPST) Normally Open (N.O.), 1B (SPST) Normally Closed (N.C.)
Operating Range 5-25 AT
Rated Power Max. 3W/30VDC/0.3A
APPLICATIONS
Portable medical device, white goods, telecommunications, security, metering, sabotage switch
Data sheet link:
https://standexelectronics.com/viewer/pdfjs/web/viewer.php?file=https%3A%2F%2Fstandexelectronics.com%2Fwp-content%2Fuploads%2F2015%2F05%2FMK24_V02.pdf
