Model :
- LH1803
Features
- Designed for real-time printing and pasting of self-adhesive labels
- Suitable for flat products like cartons and boxes
- Uses a belt conveyor for fast product movement and positioning
- Connects with the ERP system/database to get printing data in real time
- Prints barcode labels instantly during production
- A barcode reader scans each label after printing
- The scanned barcode is checked against system data for accuracy
- Defective or incorrect labels are automatically identified and removed
- Ensures a one-item–one-code system
- Helps solve product and material traceability issues

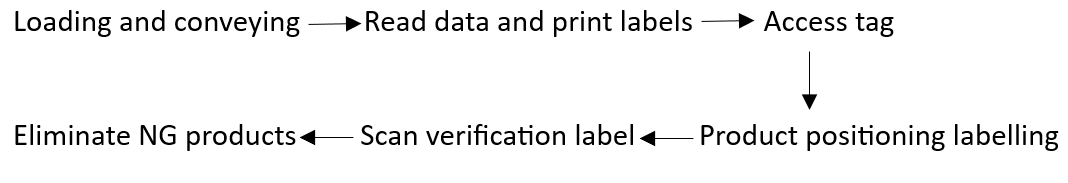

Running Processes :
.png)

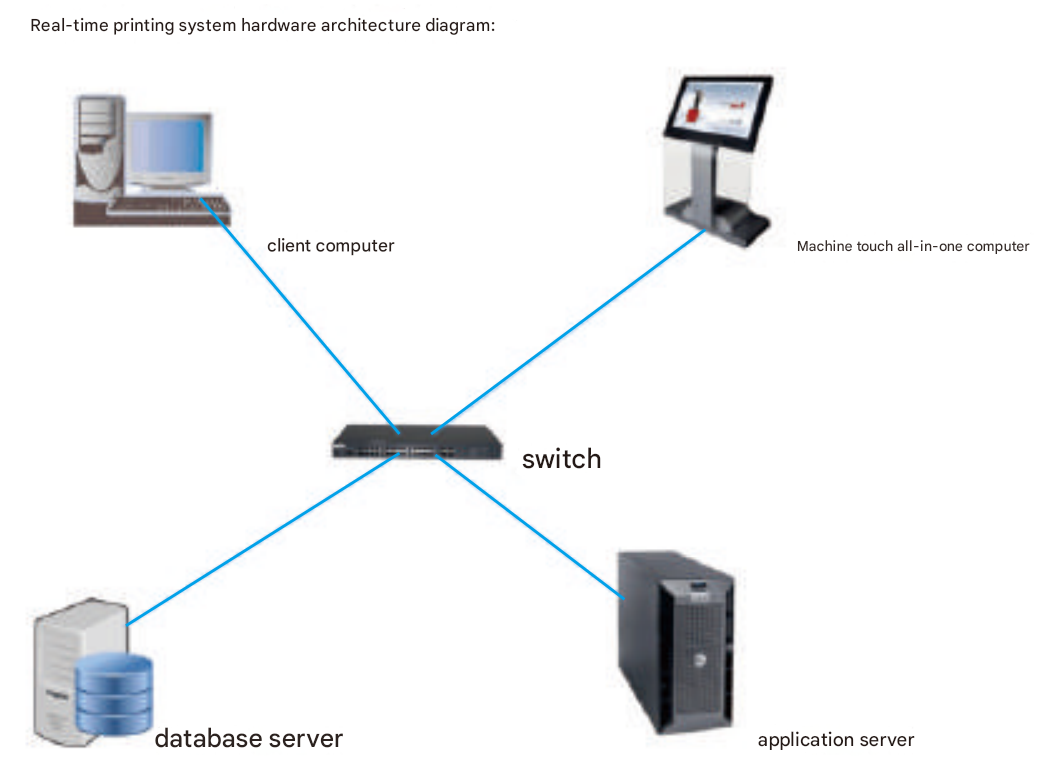

Diagram :
.png){kind=spacer}
Specifications :
- Barcode data can be sourced from various sources, offering convenient selection.
- Printing can be switched freely between online and offline modes;
- Adaptive labeling height reduces adjustment time when changing products;
- It can be operated independently or used in conjunction with an existing production line;
- The system is connected to the main system via Ethernet, enabling remote real-time management and integration, and facilitating convenient and quick software maintenance.
Parameters :
- Main parameters
- Labeling accuracy: ±1mm
- Labeling speed: 10-15 pcs/min
- Applicable label sizes: W: 20~100mm, L: 10~100mm, D: 0.076~0.25mm (label thickness)
- Applicable label rolls: 25~200mm
- Applicable product sizes: L: 50~350mm, W: 50~300mm, H: 20~200mm
- Conveying height: 850mm
- Power supply: AC220V/50Hz
- Air pressure: 0.4-0.7 MPa
- Industrial PC: WIN7/Dual-core/12-inch
- Printer: Zebra ZT230/300dpi
